Fox EP5 5.18kWh Battery with 10-Year Warranty – Fox ESS Solar Battery
Out of stock
We are now supplying the Fox EP5-H (Heated) version of this battery. You can mix EP5 with EP5-H, however, the Heating element is not functional in mixed systems. Please find the correct product on the link below:
Fox ESS EP5-H (Heated + 10yr Warranty)
The Fox EP5 5.18kWh High Voltage Battery is a slimline, high-performance, battery storage system from Fox ESS.
This product includes a 5-Year Warranty Extension for a total of 10-Years Warranty.

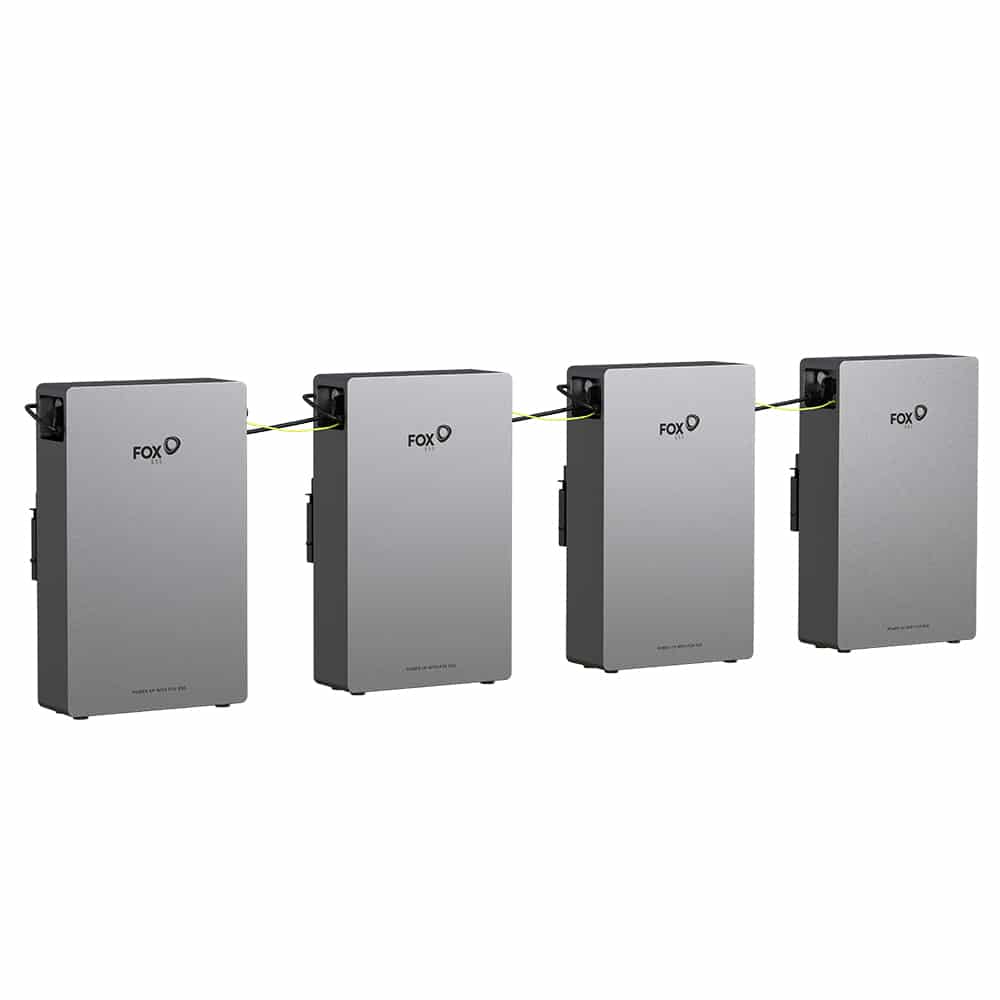

When paired with the Fox ESS Junction Box, additional batteries can be installed in parallel allowing for a maximum storage capacity of 20.72kWh. This can be doubled up to 8 units/41.44kWh when paired with the Fox H3 PRO hybrid inverter.
Please Note: Junction Box is required when installing more than 1 battery. VIEW PRODUCT
This is the first slimline and wall-mountable battery offered by Fox, and it is compatible with all Fox ESS single and 3-phase AC-Coupled and Hybrid Solar Inverters.
Battery Limits (Important)
- Maximum Battery Limit
- 4x Batteries
- 8x Batteries (H3 PRO Only)
Included in kit:
- 1x Fox EP5 5.18kWh Battery
- 5-year Warranty Extension (Total 10 Years)
Features of the Fox EP5 5.18kWh Battery:
- 5.18kWh storage capacity (per battery)
- Scalable to 20.72kWh (4 Batteries)
- Up to 41.44kWh with Fox H3 PRO
- 90% DOD (Depth of Discharge)
- Wide temperature tolerance
- Compact design for easy installation
- Floor and Wall mountable
- IP65 Rated protection
- CAN/RS485 communication
- High voltage, high efficiency battery
- 10-year warranty
Slimline Battery Storage
The Fox ESS EP Series is a high-performance, scalable battery storage system. Batteries can be floor or wall-mounted, and with their sleek design and slim profile (a depth of only 14.7cm) are suitable for a range of install locations.
Fox ESS Integrations
Axle Energy runs a free Virtual Power Plant (VPP) that works with Fox ESS batteries and inverters. It occasionally exports energy from your system to support the grid - and pays you for taking part.
- £25 signup bonus when you join via our link
- £10/month minimum earnings guaranteed
- £1 per kWh exported during events
Downloads
Datasheet – Fox EP5 Battery
Installation Guide – Fox EP5 Battery
User Manual – Fox EP5 Battery
Factsheet – Fox EP Series
Video – Fox EP Series (EP5) Install Guide
£1,291.20 inc.VAT (£1,076.00 Ex.VAT)
Out of stock
Fox EP5 5.18kWh Battery with 10-Year Warranty – Fox ESS Solar Battery
The Fox EP5 5.18kWh High Voltage Battery is a slimline, high-performance, battery storage system from Fox ESS.
This product includes a 5-Year Warranty Extension for a total of 10-Years Warranty.
When paired with the Fox ESS Junction Box, additional batteries can be installed in parallel allowing for a maximum storage capacity of 20.72kWh. This can be doubled up to 8 units/41.44kWh when paired with the Fox H3 PRO hybrid inverter.
Please Note: Junction Box is required when installing more than 1 battery. VIEW PRODUCT
This is the first slimline and wall-mountable battery offered by Fox, and it is compatible with all Fox ESS single and 3-phase AC-Coupled and Hybrid Solar Inverters.
Battery Limits (Important)
- Maximum Battery Limit
- 4x Batteries
- 8x Batteries (H3 PRO Only)
Included in kit:
- 1x Fox EP5 5.18kWh Battery
- 5-year Warranty Extension (Total 10 Years)
Features of the Fox EP5 5.18kWh Battery:
- 5.18kWh storage capacity (per battery)
- Scalable to 20.72kWh (4 Batteries)
- Up to 41.44kWh with Fox H3 PRO
- 90% DOD (Depth of Discharge)
- Wide temperature tolerance
- Compact design for easy installation
- Floor and Wall mountable
- IP65 Rated protection
- CAN/RS485 communication
- High voltage, high efficiency battery
- 10-year warranty
Slimline Battery Storage
The Fox ESS EP Series is a high-performance, scalable battery storage system. Batteries can be floor or wall-mounted, and with their sleek design and slim profile (a depth of only 14.7cm) are suitable for a range of install locations.
Advanced System Monitoring – Fox Cloud 2.0
Monitor your Fox EP5 5.18kWh Battery in real-time, see its current charge, historical charging data and even choose when and if you want to charge your battery from the grid during cheaper electricity tariffs, all from your smartphone or tablet.
Fox ESS Integrations
Axle Energy runs a free Virtual Power Plant (VPP) that works with Fox ESS batteries and inverters. It occasionally exports energy from your system to support the grid - and pays you for taking part.
- £25 signup bonus when you join via our link
- £10/month minimum earnings guaranteed
- £1 per kWh exported during events
Downloads
Datasheet – Fox EP5 Battery
Installation Guide – Fox EP5 Battery
User Manual – Fox EP5 Battery
Factsheet – Fox EP Series
Video – Fox EP Series (EP5) Install Guide
| Brand | Fox ESS |
|---|---|
| Capacity | 5.18kWh |
| Depth of Discharge | 90% |
| Life Cycles | ≥4000 |
| Protection Class | IP65 |
| Weight | 34.7kg, 50.5kg |
| Dimensions | 380*625*147 (mm) (W*H*D) |
| Warranty | 10 Years |
Downloads
Datasheet – Fox EP5 Battery
Installation Guide – Fox EP5 Battery
User Manual – Fox EP5 Battery
Factsheet – Fox EP Series
Video – Fox EP Series (EP5) Install Guide
