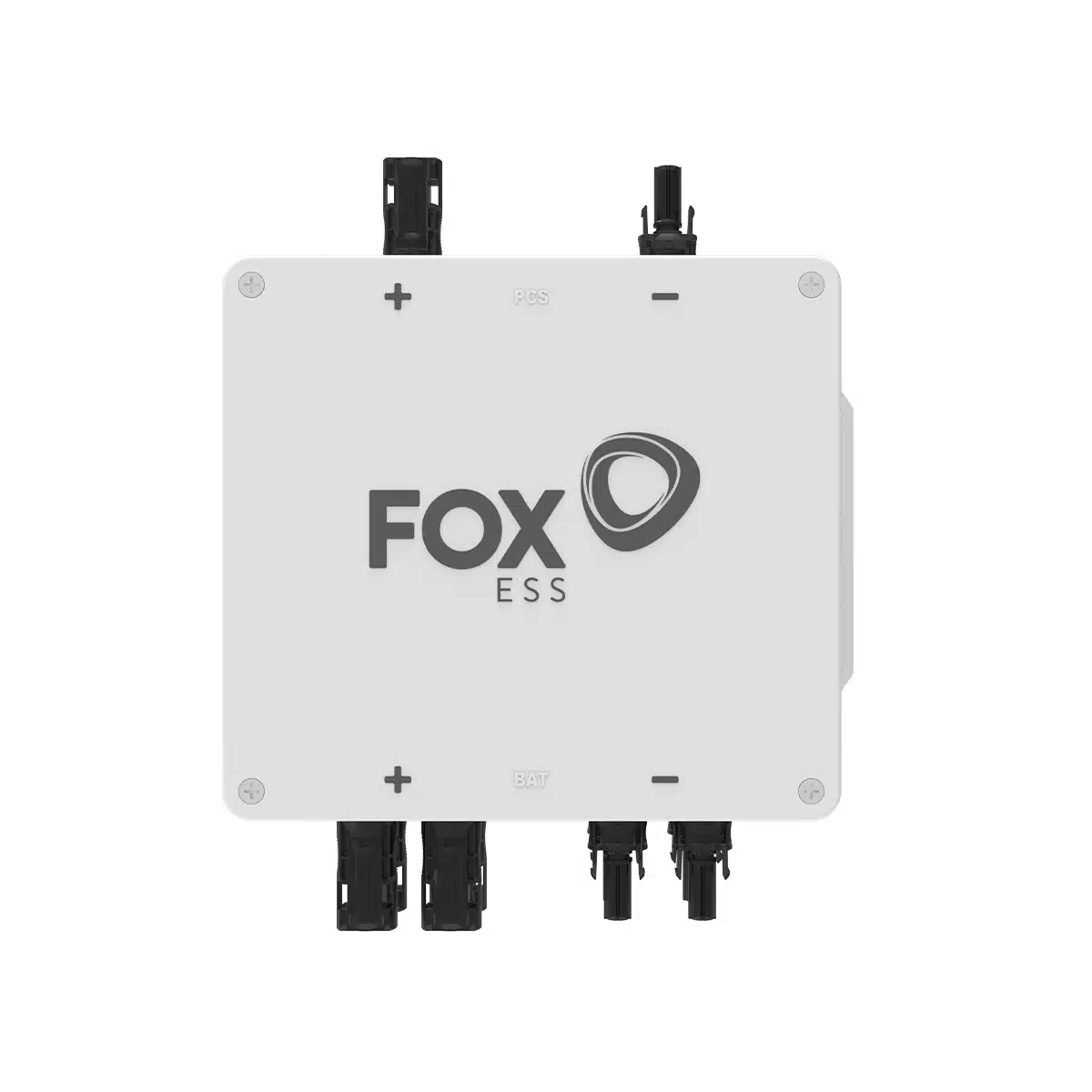

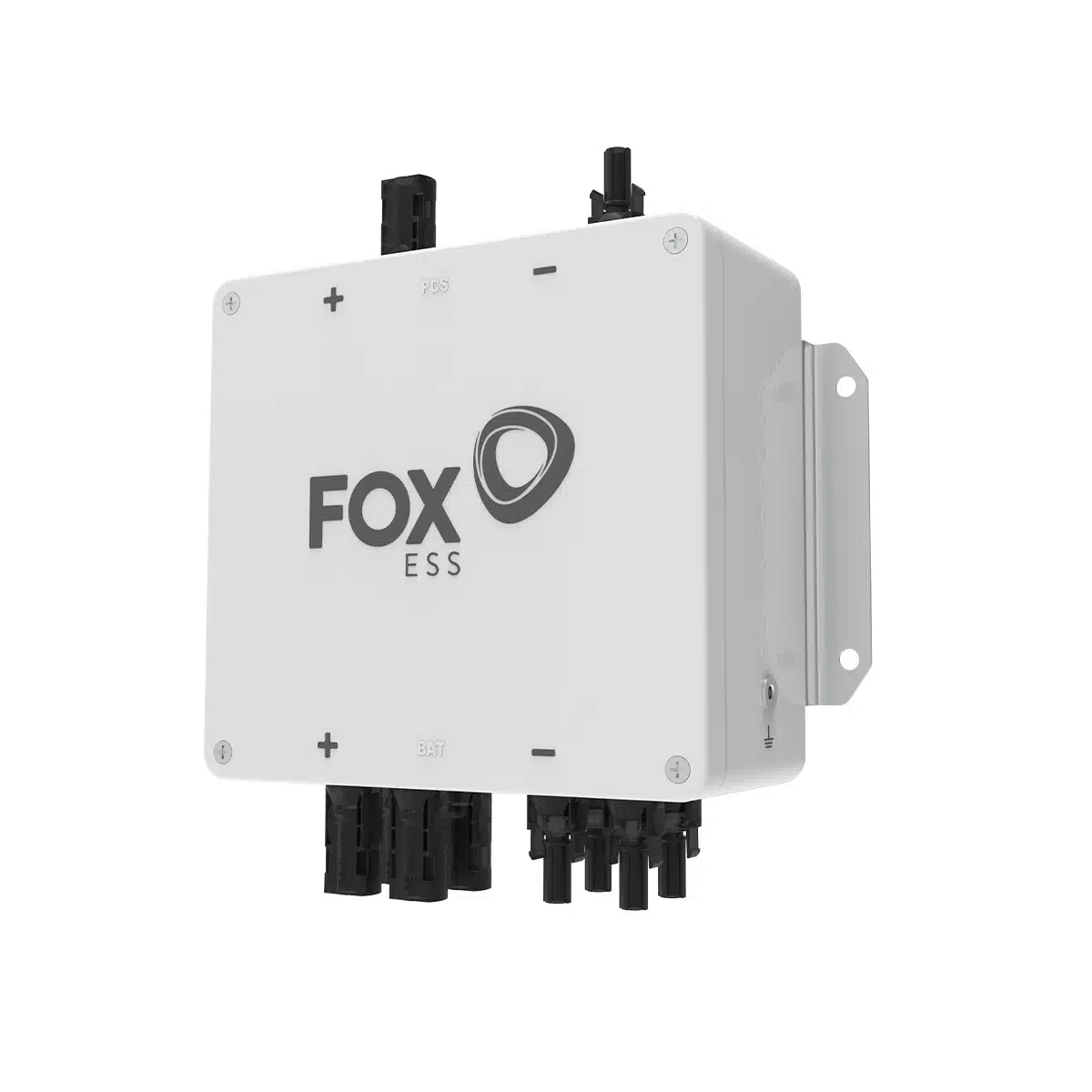

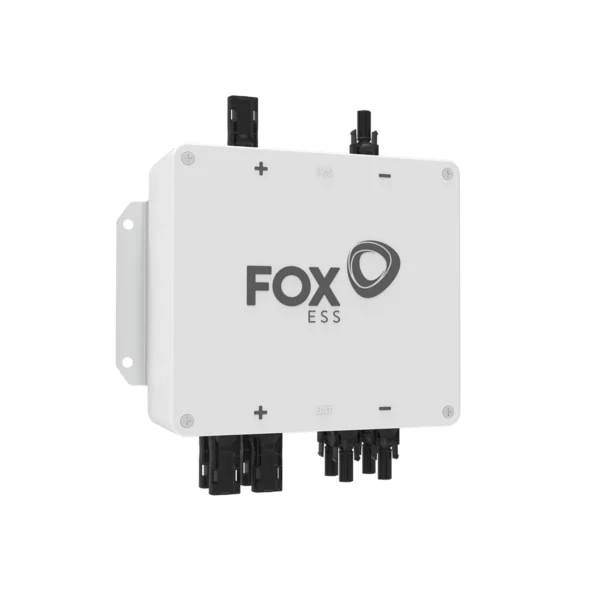

Fox HV Junction Box for paralleling up to 4 EP3 / EP5 / EP6 / EP11 / EP12 Batteries
The Fox HV Junction Box is used for paralleling the High Voltage, EP range of batteries from Fox ESS – EP3, EP5-H, EP6, EP11-H, EP12.
The junction box allows additional batteries to be installed in parallel allowing for a maximum storage capacity of 46.08kWh when paired with 4x EP12 Fox batteries.
Please Note: This product is essential if installing more than 1 Fox EP3, EP5, EP6, EP11 or EP12 batteries in a single system.
Battery Limits (Important)
- Maximum Battery Limit
- Supports up to 4-way battery parallel connection
- Allows connection for battery 2, 3 and 4 in your system
Features of the Fox Junction Box:
- Supports up to 4-way battery parallel connection
- Scalable to 46.08kWh (4x EP12 Batteries)
- Supports 4 battery inputs and 1 load input
- Max Continuous Current: 50A
- Peak Current: 65A @60s
- Lightweight for easy installation
- IP65 Rated protection, install indoors or outdoors
Fox ESS Integrations
Axle Energy runs a free Virtual Power Plant (VPP) that works with Fox ESS batteries and inverters. It occasionally exports energy from your system to support the grid - and pays you for taking part.
- £25 signup bonus when you join via our link
- £10/month minimum earnings guaranteed
- £1 per kWh exported during events
Downloads
Datasheet – Fox Junction Box
Installation Guide – Fox Junction Box
User Manual – Fox Junction Box
Factsheet – Fox EP Series
£163.20 inc.VAT (£136.00 Ex.VAT)
Fox HV Junction Box
The Fox HV Junction Box is used for paralleling the High Voltage, EP range of batteries from Fox ESS – EP3, EP5-H, EP6, EP11-H, EP12.
The junction box allows additional batteries to be installed in parallel allowing for a maximum storage capacity of 46.08kWh when paired with 4x EP12 Fox batteries.
Please Note: This product is essential if installing more than 1 Fox EP3, EP5, EP6, EP11 or EP12 batteries in a single system.
Battery Limits (Important)
- Maximum Battery Limit
- Supports up to 4-way battery parallel connection
- Allows connection for battery 2, 3 and 4 in your system
Features of the Fox HV Junction Box:
- Supports up to 4-way battery parallel connection
- Scalable to 46.08kWh (4x EP12 Batteries)
- Supports 4 battery inputs and 1 load input
- Max Continuous Current: 50A
- Peak Current: 65A @60s
- Lightweight for easy installation
- IP65 Rated protection, install indoors or outdoors
Works with Fox EP Range – Slimline Battery Storage
The Fox HV Junction Box is for use with the Fox ESS EP Series of batteries. The EP range is a high-performance, scalable battery storage system which can be floor or wall-mounted; with their sleek design and slim profile (a depth of only 14.7cm) they are suitable for a range of install locations.
Advanced System Monitoring – Fox Cloud 2.0
Monitor your Fox EP Series Battery in real-time, see its current charge, historical charging data and even choose when and if you want to charge your battery from the grid during cheaper electricity tariffs, all from your smartphone or tablet.
Fox ESS Integrations
Axle Energy runs a free Virtual Power Plant (VPP) that works with Fox ESS batteries and inverters. It occasionally exports energy from your system to support the grid - and pays you for taking part.
- £25 signup bonus when you join via our link
- £10/month minimum earnings guaranteed
- £1 per kWh exported during events
Downloads
Datasheet – Fox Junction Box
Installation Guide – Fox Junction Box
User Manual – Fox Junction Box
Factsheet – Fox EP Series
Video – Fox EP Series (EP5) Install Guide
| Brand | Fox ESS |
|---|---|
| Protection Class | IP65 |
| Weight | 4.5kg |
| Dimensions | 186*170*78 (mm) (W*H*D) |
Downloads
Datasheet – Fox Junction Box
Installation Guide – Fox Junction Box
User Manual – Fox Junction Box
Factsheet – Fox EP Series
Video – Fox EP Series (EP5) Install Guide
