Immersion Controllers
Showing all 8 results
-
All Products, iBoost, Immersion Controllers, Installation Accessories, Marlec, System Monitoring
Solar iBoost+ Buddy Monitor V2 – for Solar iBoost+ Plus
All Products, iBoost, Immersion Controllers, Installation Accessories, Marlec, System MonitoringSolar iBoost+ Buddy Monitor V2 – for Solar iBoost+ Plus
An optional extra for your Marlec Solar iBoost+ Plus, the iBoost+ Buddy Version 2. This device works as an optional extra for your iBoost. This will remotely monitor the Solar iBoost+ and let you know when it is heating your hot water and when there is spare power
Downloads
SKU: solariboostbuddy -
Immersion Controllers, myenergi
myenergi Eddi Relay & Sensor Board
The myenergi eddi has the option to install a Relay & Sensor board which allows for many different wiring configurations and includes the following features:
- Two independent multi-function relays (16Amp)
- eSense input (isolated 230V detection for low tariff etc.)
- Two temperature sensor inputs (PT1000)
- The two relays can be independently set for several different functions, or they can be set to operate as a pair.
The relay functions include: Export Threshold – Import Threshold – Operate when heating – De-stratification pump control – Timed operation – Fault signal for BMS systems
Please refer to the myenergi eddi manual for fitting diagrams.
SKU: MYEN-EDDI-RLYBD -
All Products, Immersion Controllers, Installation Accessories, myenergi

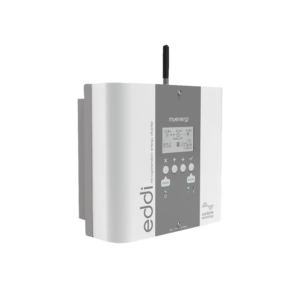

myenergi Eddi V2.1 Solar Power Diverter (WiFi Enabled)
All Products, Immersion Controllers, Installation Accessories, myenergimyenergi Eddi V2.1 Solar Power Diverter (WiFi Enabled)
The myenergi Eddi v2.1 is WiFi enabled which allows it to connect to the internet and be controlled remotely.
Eddi V2.1 is an eco-smart energy management system which diverts surplus power from your solar PV or wind generation to a designated heating appliance (or two sequentially). This excess energy will go directly to a designated appliance such as an immersion heater.
myenergi Eddi allows you to stop exporting energy back to the grid & saves you money on your energy bill.
Internet connected & remote controllable option with the myenergi hub. Learn more about the hub and shop now by clicking HERE.
Works with heat pumps when used with optional Relay & Sensor Board. Learn more about the relay board and shop now by clicking HERE.
Add myenergi harvi for wireless communication, order HERE.- 3.68kW / 16A max heater load
- Expansion module option – 2 extra outputs with temperature control
- Integral bypass switch
- Graphical back-lit LCD screen for ease of use
- Fan-less cooling
- Built-in programmable boost timers
- VariSineTM PWM technology
- Supports two heaters (sequentially)
- Wall mounting bracket for ease of installation
- Overload and short-circuit protection
- Ethernet port and built-in WiFi for connecting to the internet
- Complies with CE and UKCA Requirements
- Works alongside battery storage systems
- Energy monitoring on the go via the myenergi app
SKU: MYEN-EDDI-16A1P02H -
All Products, Immersion Controllers, Installation Accessories, myenergi
myenergi harvi – Energy Harvesting Wireless Sensor
All Products, Immersion Controllers, Installation Accessories, myenergimyenergi harvi – Energy Harvesting Wireless Sensor
The myenergi harvi is an essential part of the installation process, saving time and money. This intelligent device enables myenergi’s products to be installed remote from the current transformers.
myenergi harvi communicates wirelessly with eddi and zappi, which eliminates unsightly wiring around the home prevents the need to lift up floors and disrupt home decor.
Its patented technology is the only one of its kind, harvesting it’s own power from the CT clamps, removing the need for batteries or an external power supply.
SKU: MYEN-HARVI-65A3P -
All Products, Immersion Controllers, Installation Accessories, myenergi
myenergi Hub Remote Monitoring Unit
All Products, Immersion Controllers, Installation Accessories, myenergimyenergi Hub Remote Monitoring Unit
The myenergi hub provides internet connectivity to your myenergi devices making them smart. The hub and app work together to remotely control and monitor your products from anywhere in the world.
The hub also allows you to carry out firmware updates to keep your myenergi products equipped with all the latest features.
App Features:
- Remotely control & monitor on your mobile device
- Change your zappi charging modes
- Pre-set your geating & hot water of your eddi
- Remotely manually boost your eddi or zappi
- Adjust zappi minimum green charging level
- Observe domestic live energy flow
- View consumption, generation & diverted energy data hub device required to use the app
Hub Features:
- Remotely control & monitor your myenergi devices
- Comes with ethernet cable for direct connection to your internet router
- Remotely control & monitor on your mobile device
- Status LED’s – show if energy is being diverted by your myenergi products Access to the latest firmware updates
- Required for zappi OLEV approval
SKU: MYEN-HUB -
All Products, iBoost, Immersion Controllers
Solar iBoost+ Plus – Solar Immersion Controller
Enjoy hot water from the Sun with the Solar iBoost+ Plus – the latest automatic water heating device for PV system owners from Marlec.
How does the Solar iBoost+ Work?
- Your PV solar array generates electricity used in real-time in your home, reducing dependence on the grid and lowering energy bills. Any excess energy is typically exported to the grid, maximising efficiency, cutting costs, and supporting sustainability.
- Solar iBoost’s Sender and Clamp are installed at the household electricity meter. The Clamp detects when excess energy is available, and the Sender wirelessly sends a signal to the Solar iBoost+ to activate water heating.
- The Solar iBoost+ control unit is installed next to the hot water tank and receives messages from the Sender. When activated, it intelligently controls and adjusts the level of energy flowing to your immersion heater in line with the export levels as they rise and fall.
Its increased efficiency and extra functions deliver even more savings and when coupled with iBoost Buddy Monitor V2 you can conveniently monitor and control your Solar iBoost+ within the home.
PLEASE NOTE: The Solar iBoost+ Plus should be installed by a suitably qualified electrician. In the event that any technical after-sales support is required, enquiries should be directed to the manufacturer (Marlec) by the installer.
Downloads
Marlec Solar iBoost+ Brochure
Installation Guide – Solar iBoost+
User Manual – Solar iBoost+
Benefits of the Solar iBoost+
Solar iBoost+ Plus FAQs
Troubleshooting GuideVideo – Marlec Solar iBoost+ Plus Install Guide
SKU: solariboost -
All Products, Immersion Controllers, Solic
SOLiC 200 – Solar Immersion Controller
The SOLiC 200 Immersion Controller is an award winning British made solar immersion controller; it diverts excess energy generated by a solar PV system into a hot water tank.
Simple to use and maintenance free, the SOLiC 200 is self-contained, easy to install and can save the homeowner hundreds of pounds over the course of a year.
The product includes a 10-year return to base guarantee, has been built to last 25 years, and has been designed, constructed and fully tested in Britain to the highest CE standards.
Key Features
- Ten year warranty
- British made
- Zero export threshold
- Case dimensions: 161 x 105 x 57mm
- No light flickering
- Material: White aluminium
Comes with: SOLiC 200, load sensor and clamp, fitting instructions, mounting kit and warranty registration card.
PLEASE NOTE: The SOLiC 200 should be installed by a suitably qualified electrician.
SKU: solic-200 -
All Products, Immersion Controllers, Solic
SOLiC Wireless Solar Immersion Controller
The SOLiC Wireless is an easily installed Solar Immersion Controller, that comes complete and ready to fit. In simple terms it works like a high powered, automatic controlled, variable dimmer switch,much like a you see on lights bulbs. This offers only the power you would have exported to, typically, an immersion element, giving the household a free hot water tank most days of the year.
SKU: solic-wireless
