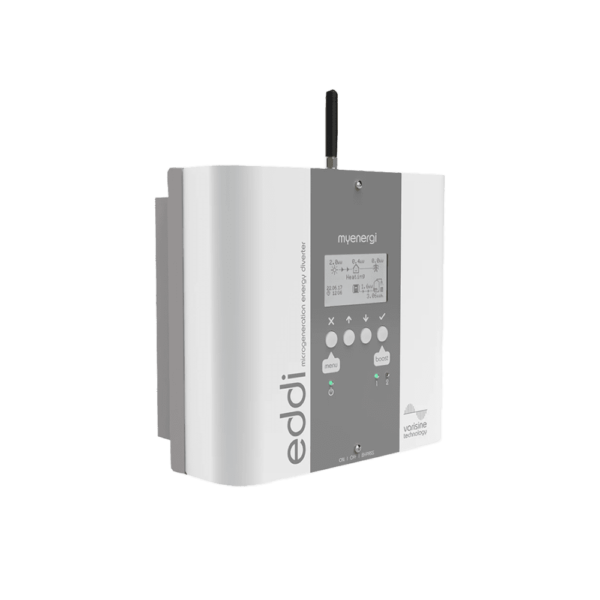

myenergi Eddi V2.1 Solar Power Diverter (WiFi Enabled)
The myenergi Eddi v2.1 is WiFi enabled which allows it to connect to the internet and be controlled remotely.
Eddi V2.1 is an eco-smart energy management system which diverts surplus power from your solar PV or wind generation to a designated heating appliance (or two sequentially). This excess energy will go directly to a designated appliance such as an immersion heater.
myenergi Eddi allows you to stop exporting energy back to the grid & saves you money on your energy bill.
Internet connected & remote controllable option with the myenergi hub. Learn more about the hub and shop now by clicking HERE.
Works with heat pumps when used with optional Relay & Sensor Board. Learn more about the relay board and shop now by clicking HERE.
Add myenergi harvi for wireless communication, order HERE.
- 3.68kW / 16A max heater load
- Expansion module option – 2 extra outputs with temperature control
- Integral bypass switch
- Graphical back-lit LCD screen for ease of use
- Fan-less cooling
- Built-in programmable boost timers
- VariSineTM PWM technology
- Supports two heaters (sequentially)
- Wall mounting bracket for ease of installation
- Overload and short-circuit protection
- Ethernet port and built-in WiFi for connecting to the internet
- Complies with CE and UKCA Requirements
- Works alongside battery storage systems
- Energy monitoring on the go via the myenergi app
£402.00 inc.VAT (£335.00 Ex.VAT)
The myenergi Eddi V2.1 is WiFi enabled which allows it to connect to the internet and be controlled remotely.
Eddi is an eco-smart energy management system which diverts surplus power from your solar PV or wind generation to a designated heating appliance (or two sequentially). This excess energy will go directly to a designated appliance such as an immersion heater.
myenergi Eddi V2.1 allows you to stop exporting energy back to the grid & saves you money on your energy bill.
Internet connected & remote controllable option with the myenergi hub. Learn more about the hub and shop now by clicking HERE.
Works with heat pumps when used with optional Relay & Sensor Board. Learn more about the relay board and shop now by clicking HERE.
Add myenergi harvi for wireless communication, order HERE.
- 3.68kW / 16A max heater load
- Expansion module option – 2 extra outputs with temperature control
- Integral bypass switch
- Graphical back-lit LCD screen for ease of use
- Fan-less cooling
- Built-in programmable boost timers
- VariSineTM PWM technology
- Supports two heaters (sequentially)
- Wall mounting bracket for ease of installation
- Overload and short-circuit protection
- Ethernet port and built-in WiFi for connecting to the internet
- Complies with CE and UKCA Requirements
- Works alongside battery storage systems
- Energy monitoring on the go via the myenergi app
Every home with micro-generation such as solar panels or a wind turbine should have an eddi. Eddi diverts surplus power that would have been exported to the grid to a resistive load upto 3.7kW, most commonly used with an immersion heater. Eddi can handle two heaters sequentially and has endless features and flexibility for complicated installs.
| Brand | myenergi |
|---|---|
| Weight | 4.3kg |
| Warranty | 3 Years |
