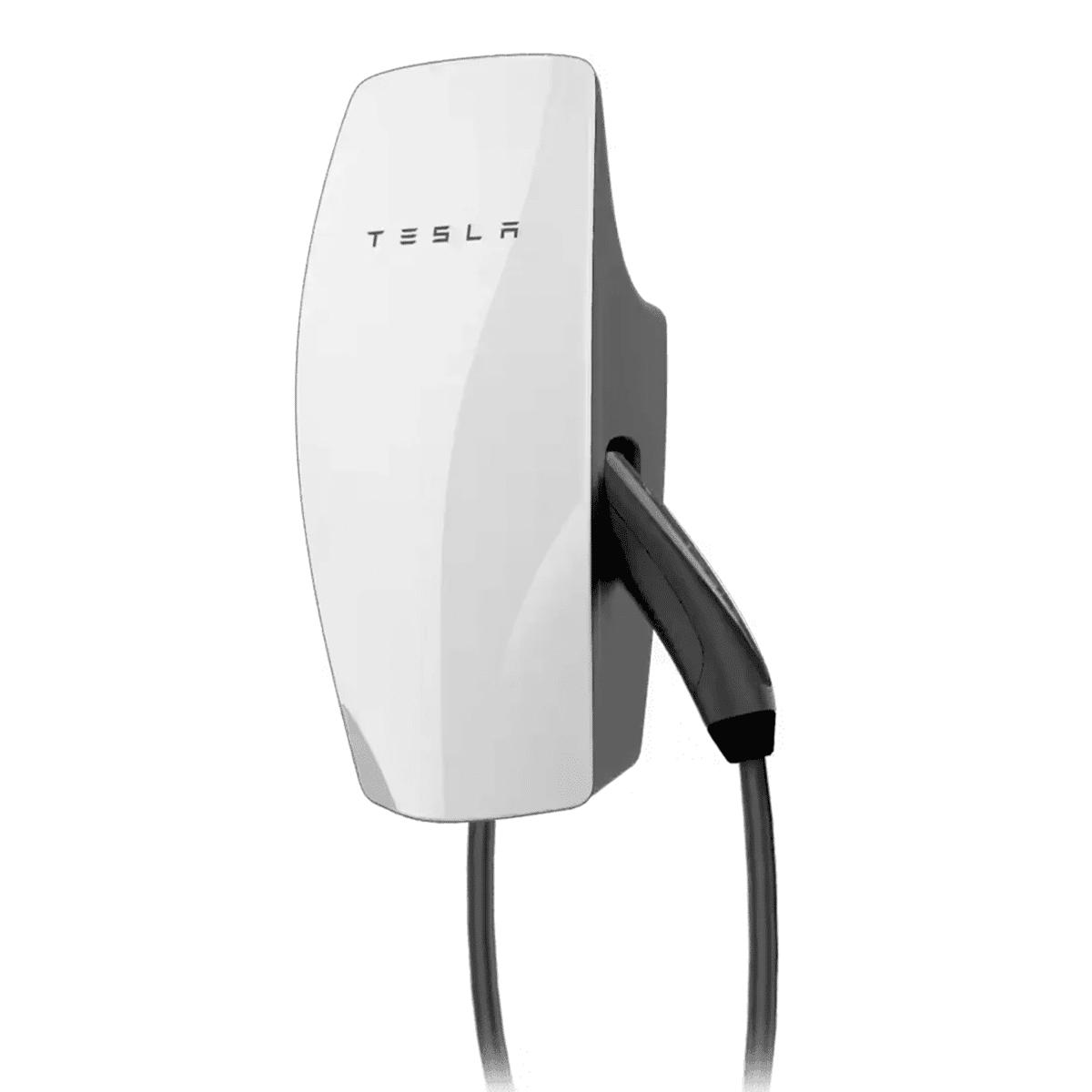

Tesla Gen 3 Wall Connector – Type 2 Tethered EV Charger (7kW/22kW)
Fast, intelligent home EV charging with the Tesla Gen 3 Wall Connector. Designed for both Tesla and non-Tesla electric vehicles with a Type 2 charging port, this sleek, Wi-Fi enabled charger delivers up to 7kW on single-phase or 22kW on three-phase power supplies, making it an ideal charging solution for homes, apartments, workplaces and commercial properties.
With integrated Wi-Fi connectivity, the Wall Connector receives over-the-air firmware updates and allows you to schedule, manage and monitor charging directly from the Tesla app. The lightweight, weather-resistant design makes it suitable for both indoor and outdoor installation.
⚠️ Important Installation Information
The Tesla Gen 3 Wall Connector does not include PEN fault protection.
Depending on your property’s earthing arrangement, additional protection may be required to comply with current UK wiring regulations.
This may include:
- A PEN Fault Protection Device (such as the Matt:e SP-EVCP-T)
- An isolating transformer
- A TT earthing arrangement
Your installer will determine the appropriate solution for your installation.
Installing on a typical UK domestic PME supply?
Our Tesla Wall Connector + Matt:e PEN Protection Bundle provides a convenient all-in-one solution for many domestic installations.
£456.00 inc.VAT (£380.00 Ex.VAT)
Tesla Gen 3 Wall Connector – 7kW / 22kW Type 2 Tethered EV Charger
Fast, intelligent home EV charging with the Tesla Gen 3 Wall Connector. Designed for both Tesla and non-Tesla electric vehicles with a Type 2 charging port, this sleek, Wi-Fi enabled charger delivers up to 7kW on single-phase or 22kW on three-phase power supplies, making it an ideal charging solution for homes, apartments, workplaces and commercial properties.
With integrated Wi-Fi connectivity, the Wall Connector receives over-the-air firmware updates and allows you to schedule, manage and monitor charging directly from the Tesla app. The lightweight, weather-resistant design makes it suitable for both indoor and outdoor installation.
Important: This charger must be installed by a qualified electrician in accordance with current UK wiring regulations. Depending on your installation, additional PEN fault protection or alternative earthing arrangements may be required.
⚠️ Important Installation Information
The Tesla Gen 3 Wall Connector does not include PEN fault protection.
Depending on your property’s earthing arrangement, additional protection may be required to comply with current UK wiring regulations.
This may include:
- A PEN Fault Protection Device (such as the Matt:e SP-EVCP-T)
- An isolating transformer
- A TT earthing arrangement
Your installer will determine the appropriate solution for your installation.
Installing on a typical UK domestic PME supply?
Our Tesla Wall Connector + Matt:e PEN Protection Bundle provides a convenient all-in-one solution for many domestic installations.
Included in Kit
- 1x Tesla Gen 3 Wall Connector
- Integrated 7.3m Type 2 tethered charging cable
- Wall mounting bracket
- Installation hardware
- Installation guide
Key Features of the Tesla Gen 3 Wall Connector
- Up to 22kW charging (three-phase supply)
- 7kW charging on standard UK single-phase installations
- Compatible with Tesla and most Type 2 electric vehicles
- 7.3m tethered Type 2 charging cable
- Wi-Fi connectivity for automatic firmware updates
- Control and scheduling via the Tesla app
- Power Sharing supports multiple Wall Connectors on the same electrical circuit
- Indoor and outdoor installation
- Compact, lightweight design
- Button on charging connector opens Tesla charge port
Technical Specifications
- Charging Power: Up to 7kW (Single Phase) / 22kW (Three Phase)
- Connector Type: Type 2 (Tethered)
- Cable Length: 7.3 metres
- Maximum Output Current: 32A (installer configurable)
- Connectivity: Wi-Fi (2.4GHz)
- Ingress Protection: IP55
- Operating Temperature: -30°C to +50°C
Physical Specifications
- Dimensions (H x W x D): 345 x 155 x 110 mm
- Weight: Approximately 6.8kg
Installation & Smart Charging
- Suitable for residential and commercial installations
- Supports both single-phase and three-phase electrical supplies
- Manage charging schedules and monitor charging sessions using the Tesla app
- Power Sharing allows multiple Wall Connectors to intelligently distribute available power
- Automatic over-the-air firmware updates via Wi-Fi
Compatibility
- Tesla Model S
- Tesla Model 3
- Tesla Model X
- Tesla Model Y
- Compatible with most electric vehicles fitted with a Type 2 charging socket
Warranty
- Residential installation: 4-Year Manufacturer Warranty
- Commercial installation: 1-Year Manufacturer Warranty
Product Code: TES-WALLCONNECTOR-G3
Learn More: Tesla Gen 3 Wall Connector
Downloads
Tesla Gen 3 Wall Connector Installation Manual
Tesla Wall Connector Datasheet
Order the Tesla Gen 3 Wall Connector today from The Eco Supermarket for fast UK delivery, expert technical support and full manufacturer warranty.
| Brand | Tesla |
|---|---|
| Protection Class | IP55 |
