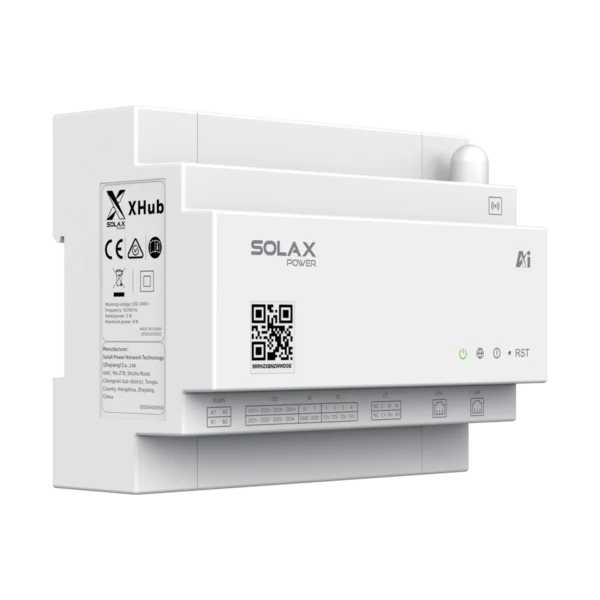

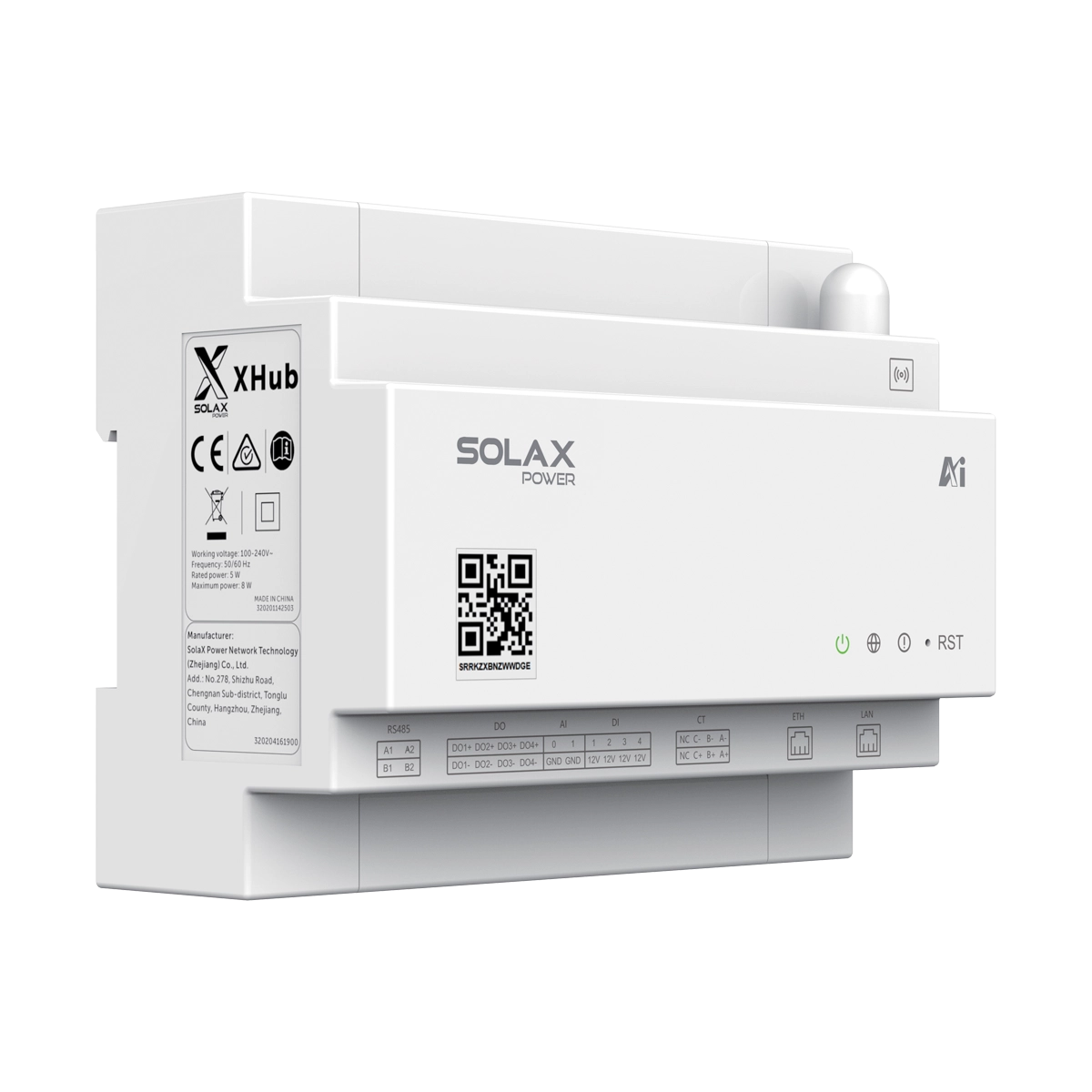

SolaX XHub – Smart Energy Management Controller (SolaX X-Hub)
Out of stock
Centralised, AI-powered energy management with the SolaX XHub. Designed to act as the brain of advanced solar and battery systems, XHub intelligently coordinates PV generation, energy storage, EV charging and electrical loads to maximise self-consumption, reduce grid reliance and optimise tariff performance.
With real-time power balancing, predictive optimisation and grid-aware control, XHub is ideal for advanced residential and commercial sites. For physical load control (such as EV chargers, heat pumps and immersion heaters), it can be paired with the SolaX Adapter Box G3 (sold separately).
£288.00 inc.VAT (£240.00 Ex.VAT)
Out of stock
SolaX XHub – Smart Energy Management Controller (DIN-Rail)
Centralised, AI-powered energy management made simple with the SolaX XHub – an intelligent energy management controller designed to coordinate modern PV, battery and electrified loads. Acting as the central hub of a smart energy system, XHub enables unified dispatching of solar generation, energy storage, EV charging, heat pumps and electrical loads to maximise self-consumption and improve overall system performance.
With tariff-based optimisation, load prioritisation and grid-friendly control, XHub is ideal for advanced residential and commercial sites where you want site-wide energy strategy rather than simple load switching.
Included in Kit
- 1x SolaX XHub Smart Energy Management Controller
Key Features of the SolaX XHub
- AI-powered management system for unified dispatch of PV, batteries, EV chargers, heat pumps and electrical devices
- Tariff-based energy optimisation (intelligent strategy adjustments based on pricing and system conditions)
- Real-time power modulation based on PV surplus to improve self-consumption
- High-power load prioritisation and multi-scenario dispatch control
- Pre-charge capability before anticipated outages or severe weather scenarios (where configured)
- Smart import limit adjustment to help reduce peak demand / demand charges (where applicable)
- Grid-friendly overload response designed to support grid compliance and stable operation
- Third-party ecosystem integration via common protocols (e.g. EEBUS, SG Ready, Modbus)
- Shelly device integration for expanded smart home / smart load compatibility
- DIN-rail compact design for installer-friendly integration in a plant room or electrical cabinet
Typical Applications
- Site-wide energy management for advanced residential or commercial PV & storage
- Tariff optimisation (smarter charging/discharging and load scheduling)
- EV charging + heat pump coordination to reduce grid import peaks
- Load prioritisation where multiple high-power loads compete for PV/battery energy
- Grid regulation / dispatch-led environments (market-dependent)
Interfaces & System Integration
- System role: Central energy management controller (strategy + dispatch)
- Protocol ecosystem: Supports common protocols (e.g. EEBUS / SG Ready / Modbus)
- Smart devices: Supports Shelly device integration
- Monitoring & management: Works within SolaX ecosystem / platform integration
Compatibility & Use with Adapter Box G3 (Important)
The SolaX XHub is designed as the system brain – it focuses on site-wide energy strategy, coordinating PV, battery and load priorities (including tariff-based optimisation and grid-friendly operation).
For physical load control interfaces (e.g. 0-10V control, relay enable signals, multi-I/O for heat pumps / immersion / certain EV integrations), XHub is commonly paired with the SolaX Adapter Box G3 (sold separately). In simple terms: XHub decides the strategy, and the Adapter Box G3 provides the control outputs to loads where needed.
Tip: If your requirement is “site-wide energy management / tariff optimisation / grid-aware control”, the XHub is the right product. If your requirement is only “control specific loads based on solar/battery”, the Adapter Box G3 may be sufficient on its own.
Core Electrical Specifications
- Installation method: DIN-rail mounting
- Ingress protection: IP20
Physical Specifications
- Dimensions (W x H x D): 126 x 100 x 65 mm
- Net weight: 600g
- Degree of protection: IP20
- Installation method: DIN-rail
Certification
- CE, RCM, PSTI
Frequently Asked Questions
What is the SolaX X-Hub?
Do I need an Adapter Box G3 with the X-Hub?
Is the X-Hub suitable for commercial sites?
Can X-Hub integrate with third-party devices?
Model: XHub
Downloads
Videos
Order the SolaX XHub today from The Eco Supermarket for fast UK delivery, expert technical support and full manufacturer warranty.
| Brand | SolaX Power |
|---|
