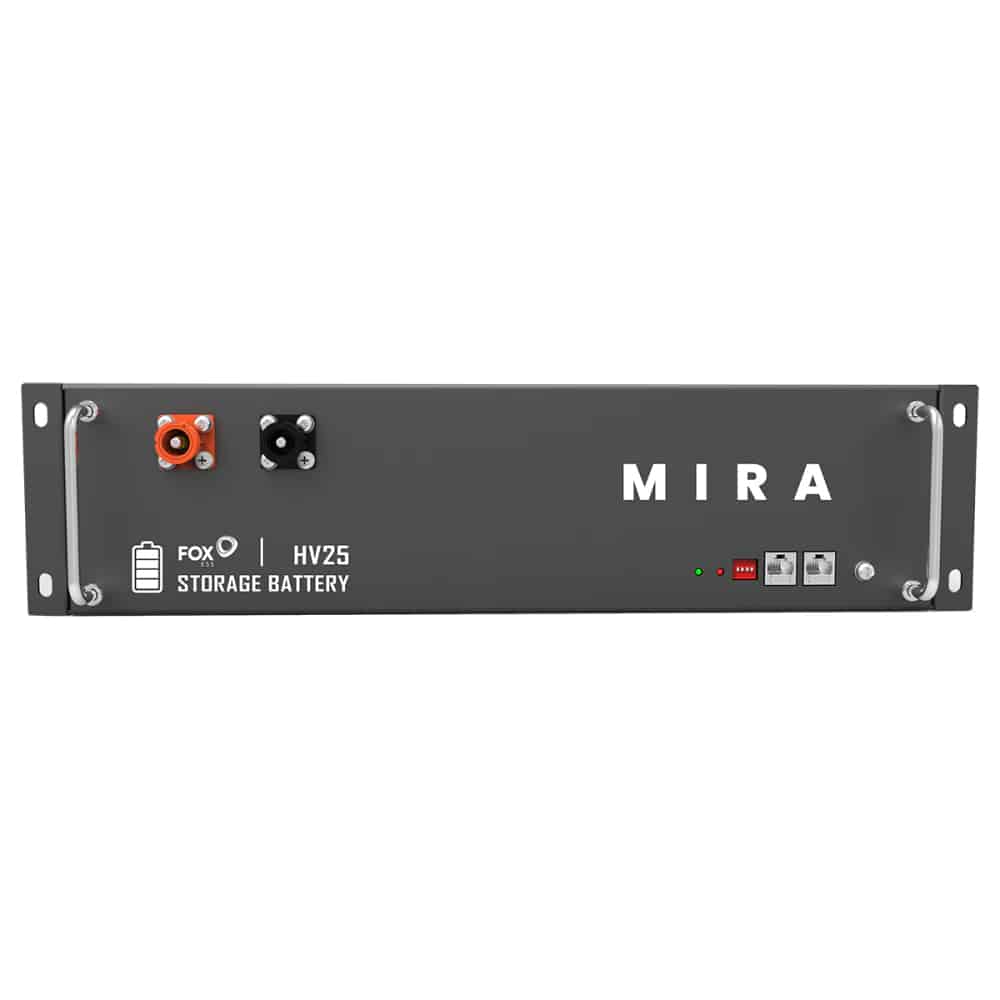

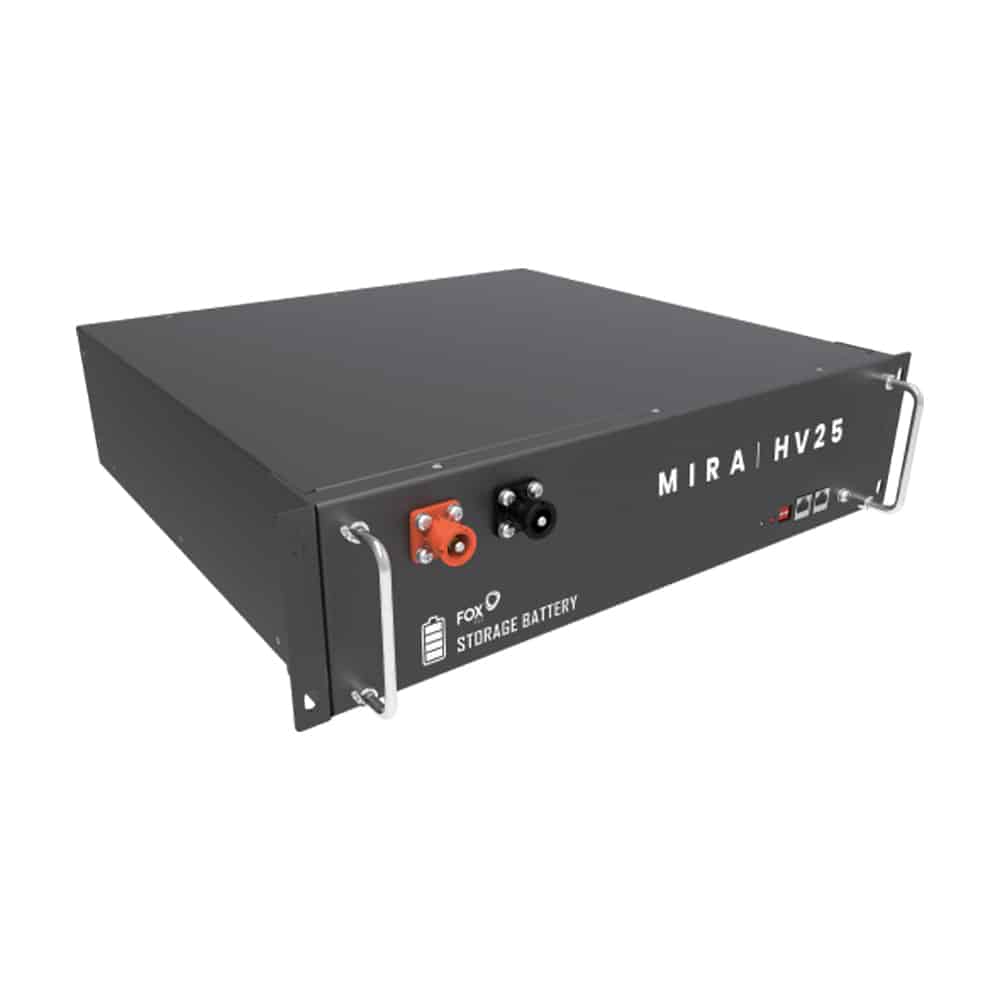

Fox MIRA HV25 Battery 2.45kWh with Brackets

Fox MIRA HV25 Battery 2.45kWh with Brackets

The Fox MIRA HV25 Battery is a high-voltage, high-performance, scalable solar battery storage module with 2.45kWh capacity. Installation is designed to be easy, with a plug and play solution that can save valuable time for installers.

*This product includes battery brackets free of charge* *BMS sold separately*

If you are installing a new battery storage system using this battery you will require 1x BMS Module as listed HERE: Fox MIRA HV25 BMS

Battery Limits and Compatibility

This battery can be installed in series to maximise your battery storage capacity. you can have either 7 or 8 batteries in total dependent on which inverter you pair them with.

SINGLE-PHASE: MINIMUM of 2 Batteries, MAXIMUM of 7 Batteries
THREE-PHASE: MINIMUM of 4 Batteries, MAXIMUM of 8 Batteries
1x BMS Module must be used with each battery stack.

The Fox MIRA HV25 Battery is compatible with the whole range of Fox Energy Storage inverters.  This includes the H1, H3, AC1, AC3, KH and KA Inverters.

Included in kit:

• 1x Fox MIRA HV25 Battery (2.45kW)

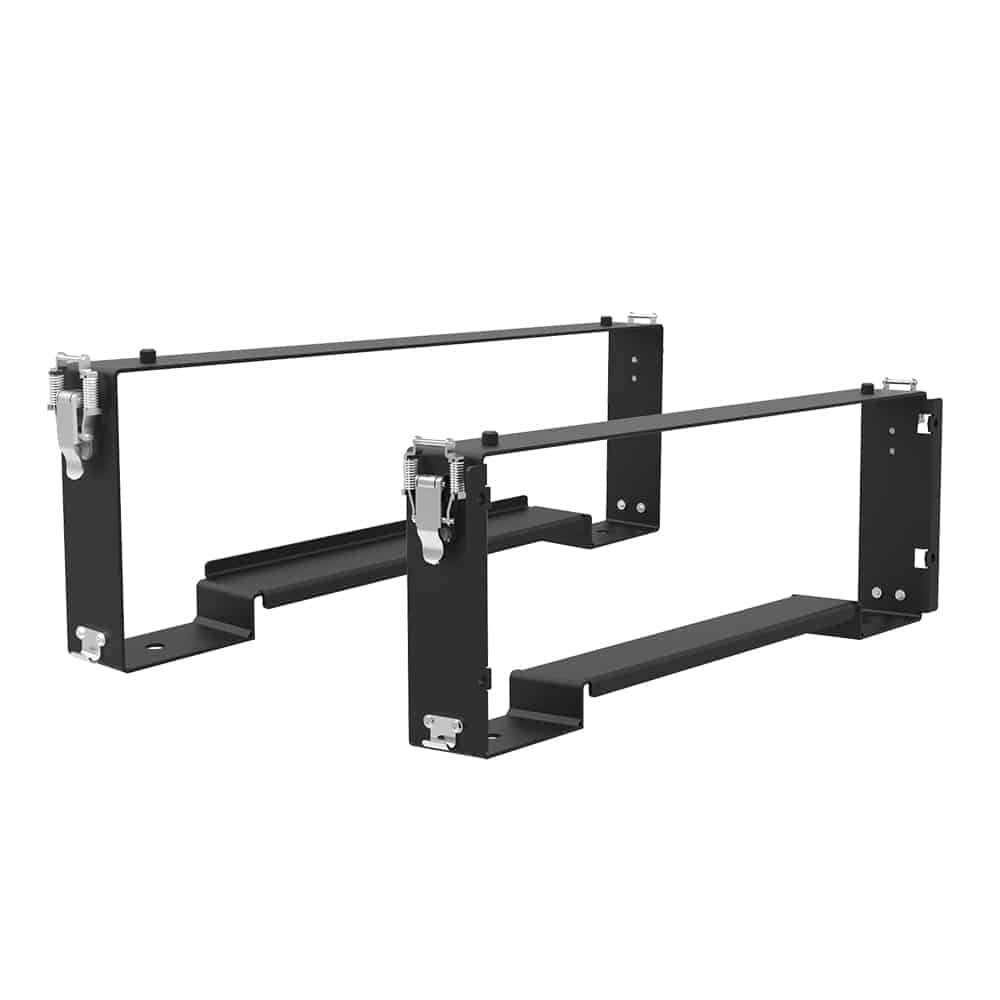

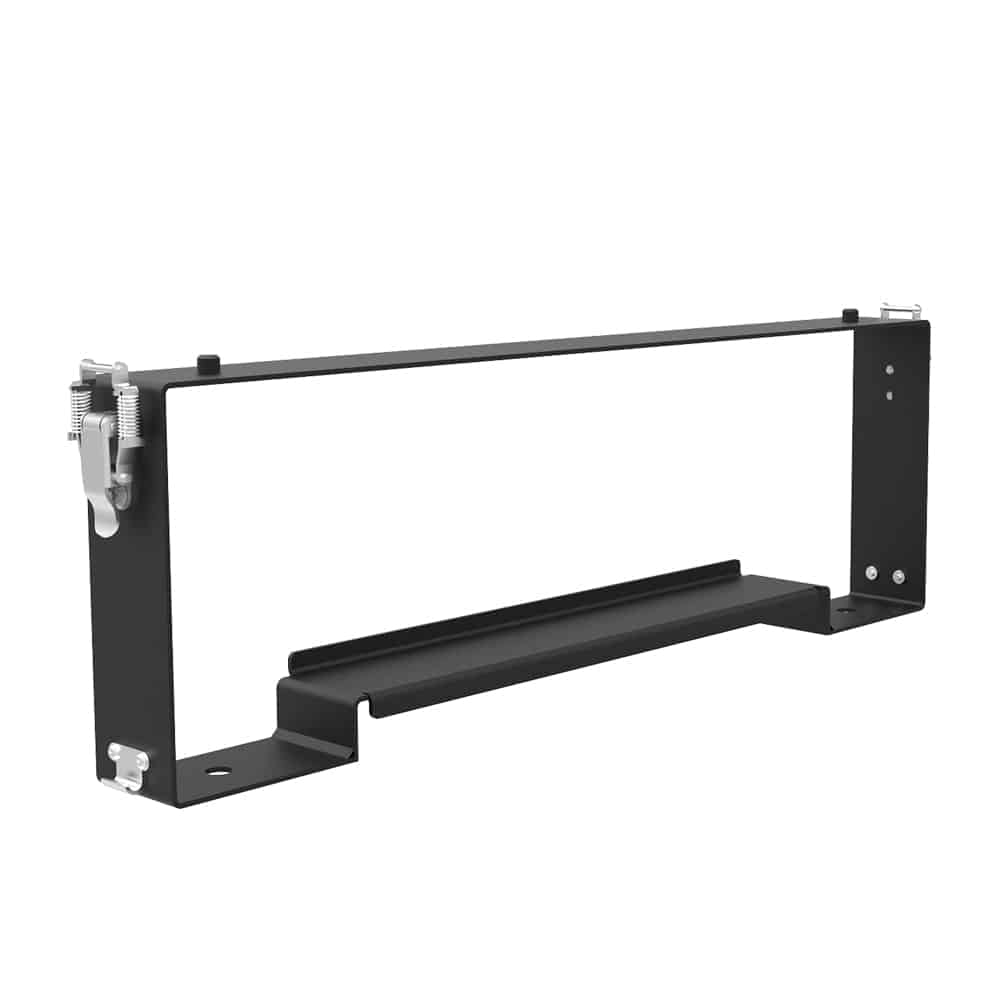

• 1x Pair of Brackets for HV25
• Short interlink Cables

Features of the Fox MIRA HV25 Battery:

The modular design of the Fox HV25 battery allows for maximum flexibility, making it suitable for a broad range of storage applications.

• 2.45kWh capacity
• Scalable to 19.6 kWh on Three Phase
• 90% Depth of Discharge
• Large temperature tolerance
• Easy installation
• CAN/RS485 communication
• High voltage
• 10-year warranty (when registered on the Fox ESS website HERE)

Easy Installation

Designed with installers in mind, the simple plug and play setup makes this battery convenient to install saving time and money.

Remote Monitoring

Monitor your battery via the Fox ESS Cloud. See its current charge, historical charging data and even choose when and if you want to charge your battery from the grid during cheaper electricity tariffs, all from your smartphone or tablet.

Fox ESS Integrations

Earn extra from a compatible home battery

Axle Energy runs a free Virtual Power Plant (VPP) for compatible home battery systems. During selected grid events, participating batteries can export energy to help support the grid - and customers are paid for taking part.

• £25 signup bonus when you join via our link
• £10/month minimum earnings guaranteed
• £1 per kWh exported during eligible events

Earn £10/month & join the Axle VPP

Explore smart energy tariffs with Octopus Energy
Octopus Energy offers tariffs designed around technologies including solar, battery storage and EV charging. Switch using our referral link and you'll receive £50 credit once your switch is complete. Existing customer? You can still explore their smart tariffs and energy services. T&Cs apply. Only one switching offer per household.

Get £50 Credit

Downloads

Datasheet – Fox MIRA HV25
Installation Guide – Fox MIRA HV25
User Manual – Fox MIRA HV25
Warranty Document – Fox MIRA HV25

Video
