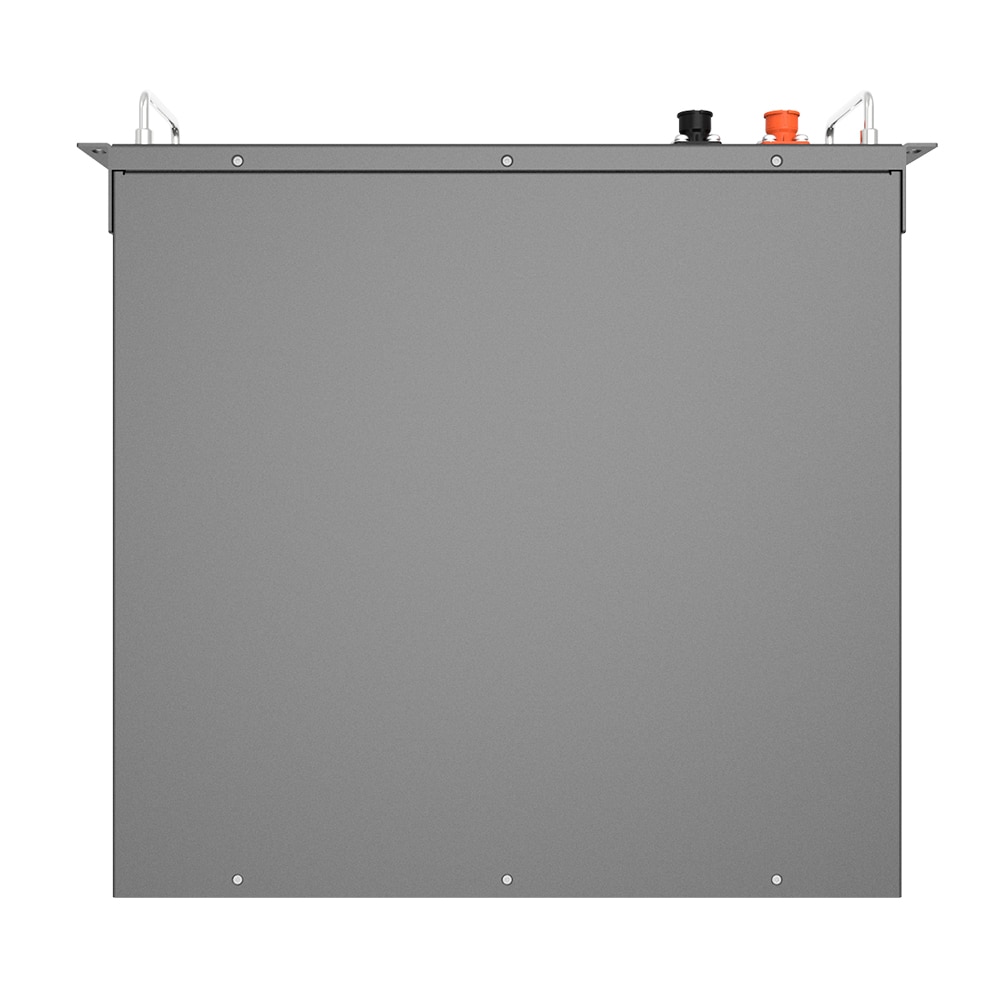

Fox HV2600 V1 2.6kWh Battery with Brackets (V1) Version D
Out of stock
The Fox HV2600 2.6kWh Battery (V1) is scalable solar battery storage module with 2.6kWh capacity designed for use with the Fox ESS inverter and charger range.
This is the V1 (Version 1 / Version D) model of the battery. This can be used with a V1 BMS ONLY. Version C and D batteries are fine to mix. If you are unsure please contact us. If you need V2, please see HERE.
*This product includes battery brackets free of charge*
Battery Limits and Compatibility
This battery can be installed in series to maximise your battery storage capacity. you can have either 7 or 8 batteries in total dependent on which inverter you pair them with.
SINGLE-PHASE: MINIMUM of 2 Batteries, MAXIMUM of 7 Batteries
THREE-PHASE: MINIMUM of 3 Batteries, MAXIMUM of 8 Batteries
AIO SINGLE-PHASE: MINIMUM of 2 Batteries, MAXIMUM of 4 Batteries
AIO THREE-PHASE: MUST USE 4 Batteries
1x BMS Module must be used with each battery stack.
The Fox HV2600 V1 Battery is compatible with the whole range of Fox Energy Storage inverters. This includes the H1, H3, AC1, AC3, KH and KA Inverters.
Included in kit:
- 1x Fox HV2600 Battery 2.6kWh (V1 / Version 1 / Version D)

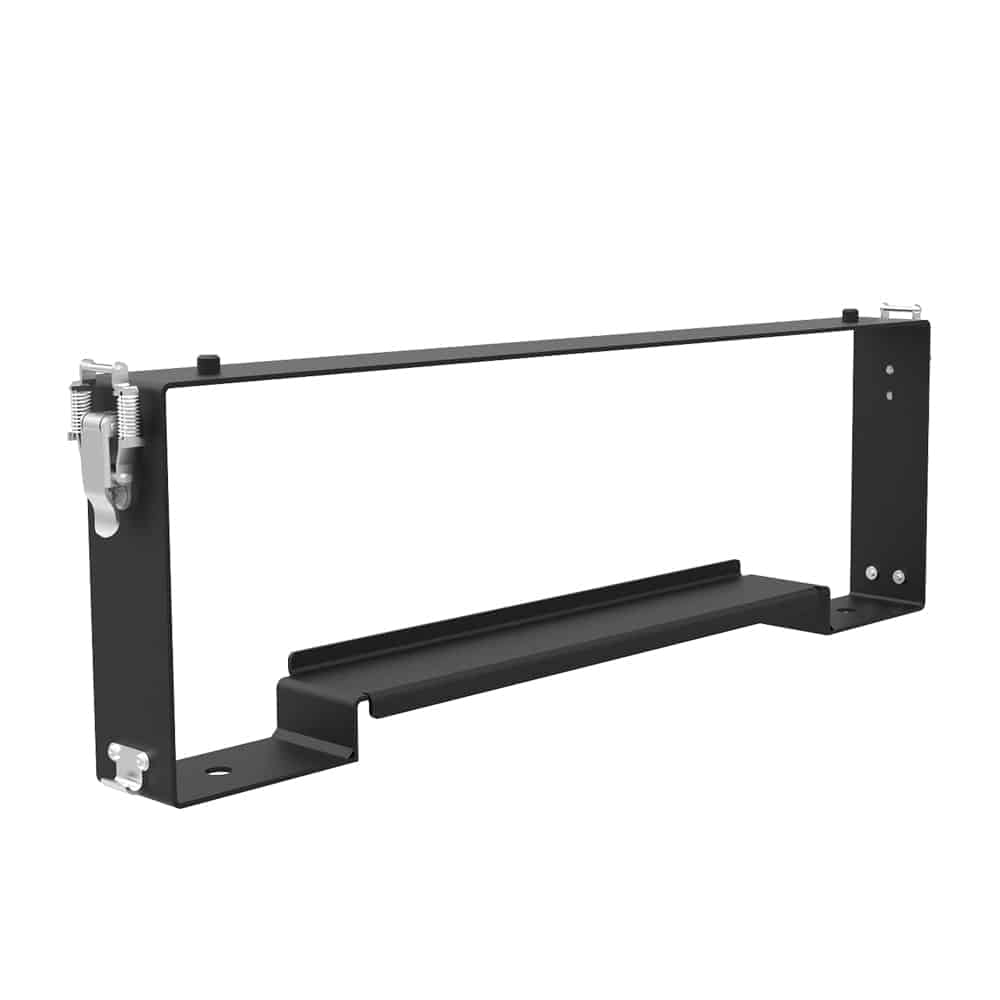

- 1x Pair of Brackets for HV2600
Features of the Fox HV2600 2.6kWh Battery:
The modular design of the Fox HV2600 battery allows for maximum flexibility, making it suitable for a broad range of storage applications.
- 2.6kWh capacity
- Scalable to 18.2kWh on Three Phase
- 90% Depth of Discharge
- Large temperature tolerance
- Easy installation
- CAN/RS485 communication
- High voltage
- 10-year warranty (when registered on the Fox ESS website HERE)
Fox ESS Integrations
Axle Energy runs a free Virtual Power Plant (VPP) that works with Fox ESS batteries and inverters. It occasionally exports energy from your system to support the grid - and pays you for taking part.
- £25 signup bonus when you join via our link
- £10/month minimum earnings guaranteed
- £1 per kWh exported during events
Downloads
Datasheet – Fox HV2600
Installation Guide – Fox HV2600
User Manual – Fox HV2600
Warranty Document – Fox HV2600
Fox Battery Configuration Guide
£882.00 inc.VAT (£735.00 Ex.VAT)
Out of stock
The Fox HV2600 2.6kWh Battery Version 1 (V1) is scalable solar battery storage module with 2.6kWh capacity designed for use with the Fox ESS inverter and charger range.
This is the V1 (Version 1 / Version D) model of the battery. This can be used with a V1 BMS ONLY. Version C and D batteries are fine to mix. If you are unsure please contact us. If you need V2, please see HERE.
*This product includes battery brackets free of charge*
Battery Limits and Compatibility
This battery can be installed in series to maximise your battery storage capacity. you can have either 7 or 8 batteries in total dependent on which inverter you pair them with.
SINGLE-PHASE: MINIMUM of 2 Batteries, MAXIMUM of 7 Batteries
THREE-PHASE: MINIMUM of 3 Batteries, MAXIMUM of 8 Batteries
AIO SINGLE-PHASE: MINIMUM of 2 Batteries, MAXIMUM of 4 Batteries
AIO THREE-PHASE: MUST USE 4 Batteries
1x BMS Module must be used with each battery stack.
The Fox HV2600 V1 Battery is compatible with the whole range of Fox Energy Storage inverters. This includes the H1, H3, AC1, AC3, KH and KA Inverters.
Included in kit:
- 1x Fox HV2600 Battery 2.6kWh (V1 / Version 1 / Version D)
- 1x Pair of Brackets for HV2600
Features of the Fox HV2600 2.6kWh Battery:
The modular design of the Fox HV2600 battery allows for maximum flexibility, making it suitable for a broad range of storage applications.
- 2.6kWh capacity
- Scalable to 18.2kWh on Three Phase
- 90% Depth of Discharge
- Large temperature tolerance
- Easy installation
- CAN/RS485 communication
- High voltage
- 10-year warranty (when registered on the Fox ESS website HERE)
Easy Installation
Designed with installers in mind, the simple plug and play setup makes this battery convenient to install saving time and money.
Remote Monitoring
Monitor your battery via the Fox ESS Cloud. See its current charge, historical charging data and even choose when and if you want to charge your battery from the grid during cheaper electricity tariffs, all from your smartphone or tablet.
Fox ESS Integrations
Axle Energy runs a free Virtual Power Plant (VPP) that works with Fox ESS batteries and inverters. It occasionally exports energy from your system to support the grid - and pays you for taking part.
- £25 signup bonus when you join via our link
- £10/month minimum earnings guaranteed
- £1 per kWh exported during events
Downloads
Datasheet – Fox HV2600
Installation Guide – Fox HV2600
User Manual – Fox HV2600
Warranty Document – Fox HV2600
Fox Battery Configuration Guide
Video
| Brand | Fox ESS |
|---|---|
| Capacity | 2.6kWh |
| Depth of Discharge | 90% |
| Life Cycles | >6000 |
| Protection Class | IP21 |
| Warranty | 10 Years |
