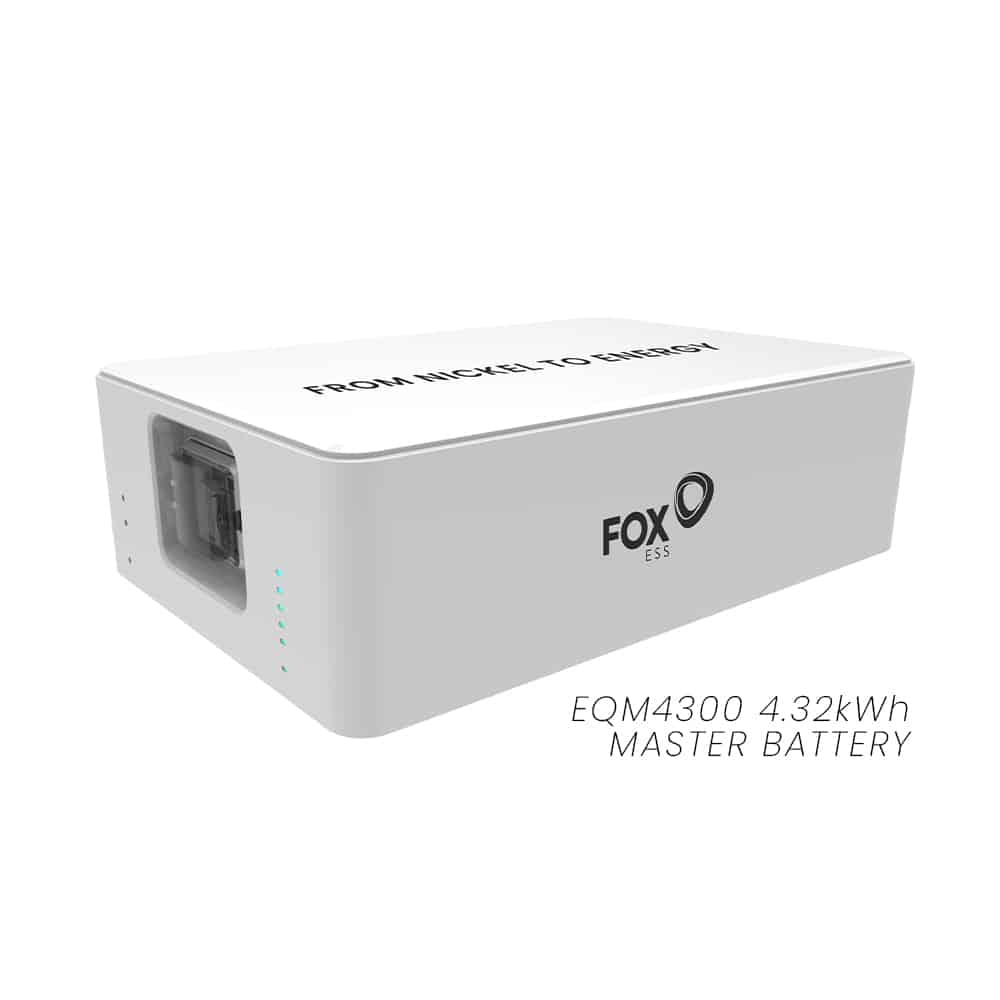

Fox EQ4300 4.32kWh MASTER Battery – EQM4300 Fox ESS
Unlock Greater Energy Storage with the Fox EQ4300 4.32kWh MASTER Battery — a powerful high-voltage expansion unit designed to work exclusively with the Fox EQ4300 SLAVE batteries.
The Fox EQ4300 4.32kWh MASTER battery offers a compact, stackable design for flexible installation, allowing you to expand your system with up to 6 SLAVE units.
Note: This is a MASTER unit and cannot function independently. At least 1 SLAVE battery is required. You can purchase a compatible SLAVE battery here.
System Configuration Limits
Minimum Setup Requirements:
- Single Phase: 1x Master + 1x Slave
- Three Phase: 1x Master + 2x Slaves
Maximum Capacity:
1x Master + 6x Slaves = 30.24kWh total
Key Features of the Fox EQ4300 4.32kWh MASTER Battery:
- 4.32kWh Storage Capacity per battery
- Scalable up to 30.24kWh with up to 6 Slave units
- 90% Depth of Discharge (DOD) for high efficiency
- Compact & Stackable for space-saving installation
- Easy Plug-and-Play Setup with simple buckle-fixing design
- CAN/RS485 Communication for seamless system integration
- Wide Operating Temperature Range
- Fast Charge/Discharge Performance
- 12-Year Warranty (upon registration at Fox ESS website)
Product Code: EQM4300
Learn More: Fox ESS Energy Cube Factsheet
Fox ESS Integrations
Axle Energy runs a free Virtual Power Plant (VPP) that works with Fox ESS batteries and inverters. It occasionally exports energy from your system to support the grid - and pays you for taking part.
- £25 signup bonus when you join via our link
- £10/month minimum earnings guaranteed
- £1 per kWh exported during events
Downloads
Datasheet – Fox EQ4300 4.32kWh Battery
Installation Guide for Fox Energy Cube Batteries
User Manual for Fox Energy Cube Batteries
Warranty Document – Fox ESS
£1,440.00 inc.VAT (£1,200.00 Ex.VAT)
| Quantity | Discount Per Unit |
| 2 - 3 | £15.00 |
| 4 + | £20.00 |
Unlock Greater Energy Storage with the Fox EQ4300 4.32kWh MASTER Battery — a powerful high-voltage expansion unit designed to work exclusively with the Fox EQ4300 SLAVE batteries.
The Fox EQ4300 4.32kWh MASTER battery offers a compact, stackable design for flexible installation, allowing you to expand your system with up to 6 SLAVE units.
Note: This is a MASTER unit and cannot function independently. At least 1 SLAVE battery is required. You can purchase a compatible SLAVE battery here.
System Configuration Limits
Minimum Setup Requirements:
- Single Phase: 1x Master + 1x Slave
- Three Phase: 1x Master + 2x Slaves
Maximum Capacity:
1x Master + 6x Slaves = 30.24kWh total
Key Features of the Fox EQ4300 4.32kWh MASTER Battery:
- 4.32kWh Storage Capacity per battery
- Scalable up to 30.24kWh with up to 6 Slave units
- 90% Depth of Discharge (DOD) for high efficiency
- Compact & Stackable for space-saving installation
- Easy Plug-and-Play Setup with simple buckle-fixing design
- CAN/RS485 Communication for seamless system integration
- Wide Operating Temperature Range
- Fast Charge/Discharge Performance
- 12-Year Warranty (upon registration at Fox ESS website)
Easy Installation
Designed with installers in mind, the Fox EQ4300 4.32kWh MASTER Battery is a plug-and-play system with a stackable modular design, making it simple to expand your setup – even post-installation.
Real-Time Monitoring
Track your battery’s performance with ease using your smartphone or tablet. Access live data, historical charge logs, and configure charging schedules to take advantage of off-peak energy rates.
Product Code: EQM4300
Learn More: Fox ESS Energy Cube Factsheet
Fox ESS Integrations
Axle Energy runs a free Virtual Power Plant (VPP) that works with Fox ESS batteries and inverters. It occasionally exports energy from your system to support the grid - and pays you for taking part.
- £25 signup bonus when you join via our link
- £10/month minimum earnings guaranteed
- £1 per kWh exported during events
Downloads
Datasheet – Fox EQ4300 4.32kWh Battery
Installation Guide for Fox Energy Cube Batteries
User Manual for Fox Energy Cube Batteries
Warranty Document – Fox ESS
Video – Fox Energy Cube Series
| Brand | Fox ESS |
|---|---|
| Capacity | 4.32kWh |
| Depth of Discharge | 90% |
| Life Cycles | >6000 |
| Protection Class | IP65 |
| Weight | 37kg |
| Warranty | 12 Years |
Product Code: EQM4300
Learn More: Fox ESS Energy Cube Factsheet
Downloads
Datasheet – Fox EQ4300 4.32kWh Battery
Installation Guide for Fox Energy Cube Batteries
User Manual for Fox Energy Cube Batteries
Warranty Document – Fox ESS
Video – Fox Energy Cube Series
